BACnet/IP Features

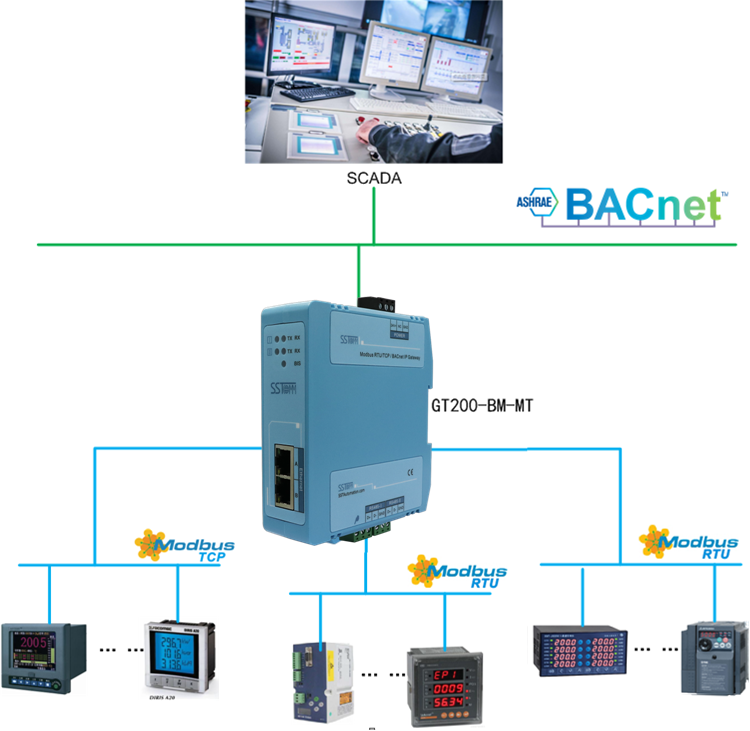

• Supports protocol conversion between Modbus TCP / Modbus Serial and BACnet/IP.
• Modbus TCP and BACnet/IP share the same Ethernet interface for streamlined integration.
• Dual Ethernet ports with self-adaptive capabilities, IP address conflict detection, and automatic routing for robust networking.
• Supports BACnet/IP services: Who-Is, I-Am, Who-Has, I-Have, Read Property, Write Property, Read Property Multiple.
• Supports up to:
  • 500 Binary Inputs (BI)
  • 300 Binary Outputs (BO)
  • 300 Binary Values (BV)
  • 500 Analog Inputs (AI)
  • 300 Analog Outputs (AO)
  • 300 Analog Values (AV)
  • 500 Multi-State Inputs (MSI)
  • 100 Multi-State Outputs (MSO)
  • 100 Multi-State Values (MSV)

Modbus TCP Features

• Acts as a Modbus TCP client to communicate with up to 36 different IP addresses or Modbus TCP servers with different unit IDs.
• Supports Modbus function codes: 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x0F, 0x10,0x17.

Modbus Serial Features

• Supports Modbus RTU/ASCII master mode via RS-485.
• Allows integration of up to 32 Modbus serial slave devices per serial port.
• Configurable baud rate (up to 115200 bps), data bits, parity, and stop bits.
• Supports same Modbus function codes as Modbus TCP (0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x0F, 0x10,0x17).

General

• Power supply: 24VDC (range: 11–30VDC), 90mA @ 24VDC.
• Operating temperature: -20°C to 60°C (-4°F to 140°F).
• Humidity: 5% to 95% RH (non-condensing).

Physical Features

• Dimension (W*H*D): 1.3 in * 4.6 in * 4.1 in (34 mm * 116 mm * 105 mm).
• Mounting: 35mm DIN rail.
• Protection rating: IP20.
