EtherNet/IP Series
CANopen to EtherNet/IP Gateway
GT200-EI-CO V4.5
909-490-7557
WhatsApp
WhatsApp
+1-909-490-7557

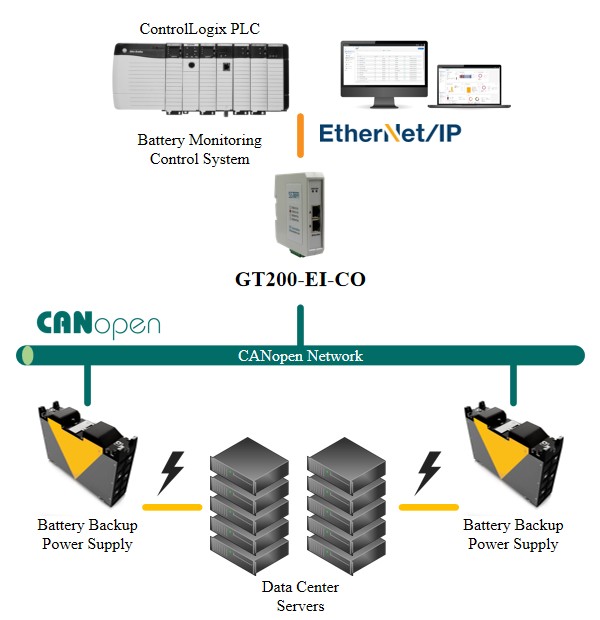

The GT200‑EI‑CO is a high-performance gateway that seamlessly integrates CANopen devices into EtherNet/IP networks. Acting as both a CANopen master and an EtherNet/IP adapter for efficient, real-time data exchange. It features a compact design with separate 3-pin terminals for CAN communication and power supply, simplifying installation and wiring in industrial environments.
-
Technical Specification
-
Order Information
-
Download
-
Quick Start Guide
-
Selection Guide
-
Case Study
-
Related Products
-
Warranty & Service
Technical Specification:
- Features a single-channel CAN 2.0A interface. CAN baud rate: 10kbit/s, 20kbit/s, 50kbit/s, 100kbit/s, 125kbit/s, 250kbit/s, 500kbit/s, 1Mbps.
- DS-301 V4.01 and CiA Draft Recommendation 303 compliant.
- Advanced CANopen Management: Configurable SDO polling intervals, EtherNet/IP-initiated SDO commands, adjustable SDO retry limits, and polling delays.
- Supports configurable NMT_RESET commands for flexible network management.
- Fully compliant with ODVA standards for EtherNet/IP communication, supports 510/504/256/128/64/32/16/8 bytes.
- Supports TCP and UDP port communication.
- The CAN 3-pin terminal only includes the CAN interface without power supply.
- Isolated power supply interface: 24VDC (9V-30V), maximum 80mA(24VDC).
- Operating Temp: -4°F to 140°F ( -20°C to 60°C), Rel. Humidity: 5% -95%, non-condensing.
- Dimensions (W
