5-Port Gigabit EtherNet/IP DLR Tap ETAP-G5-GLR

5-Port Gigabit EtherNet/IP DLR Tap

ETAP-G5-DLR

909-490-7557

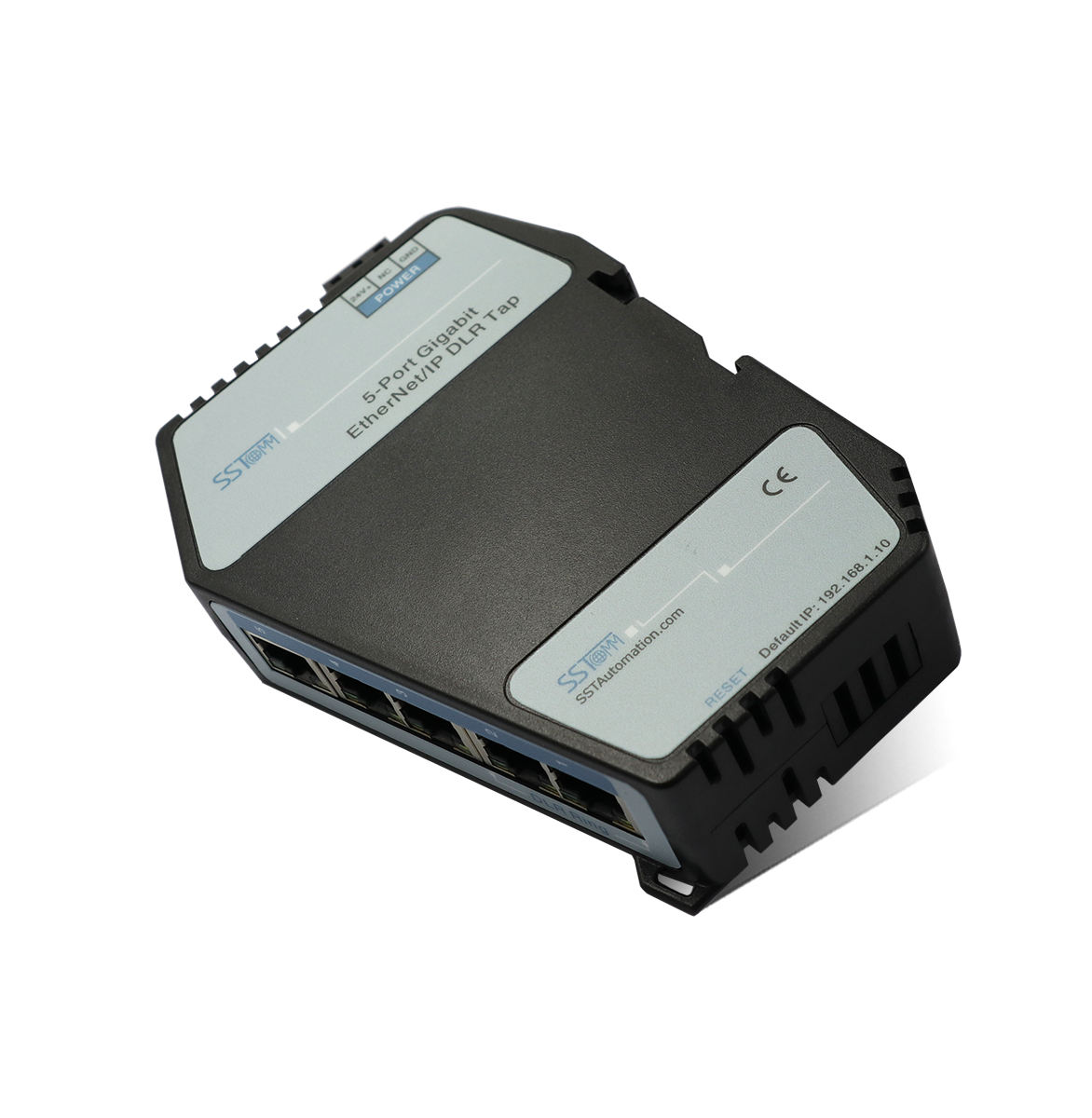

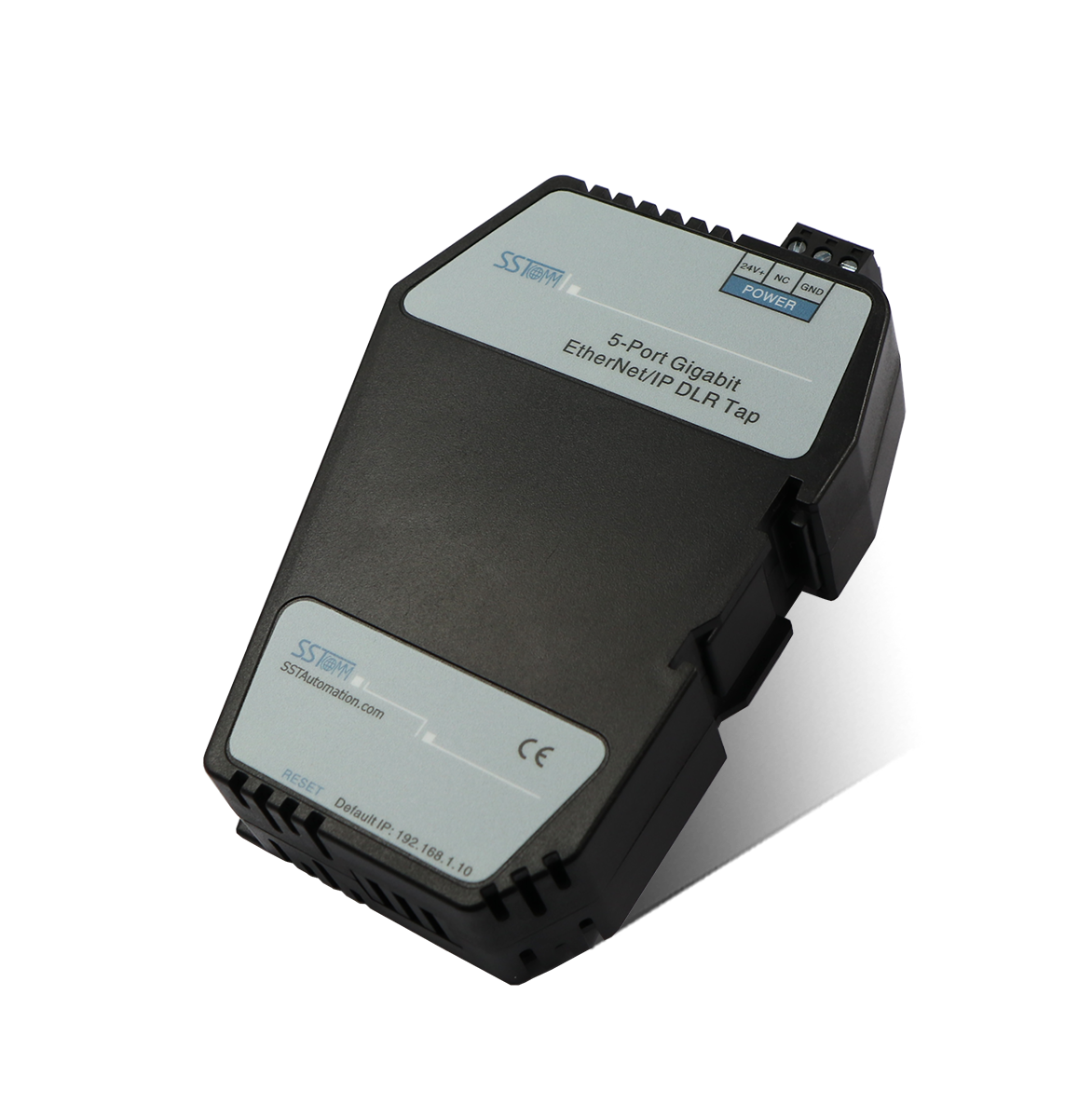

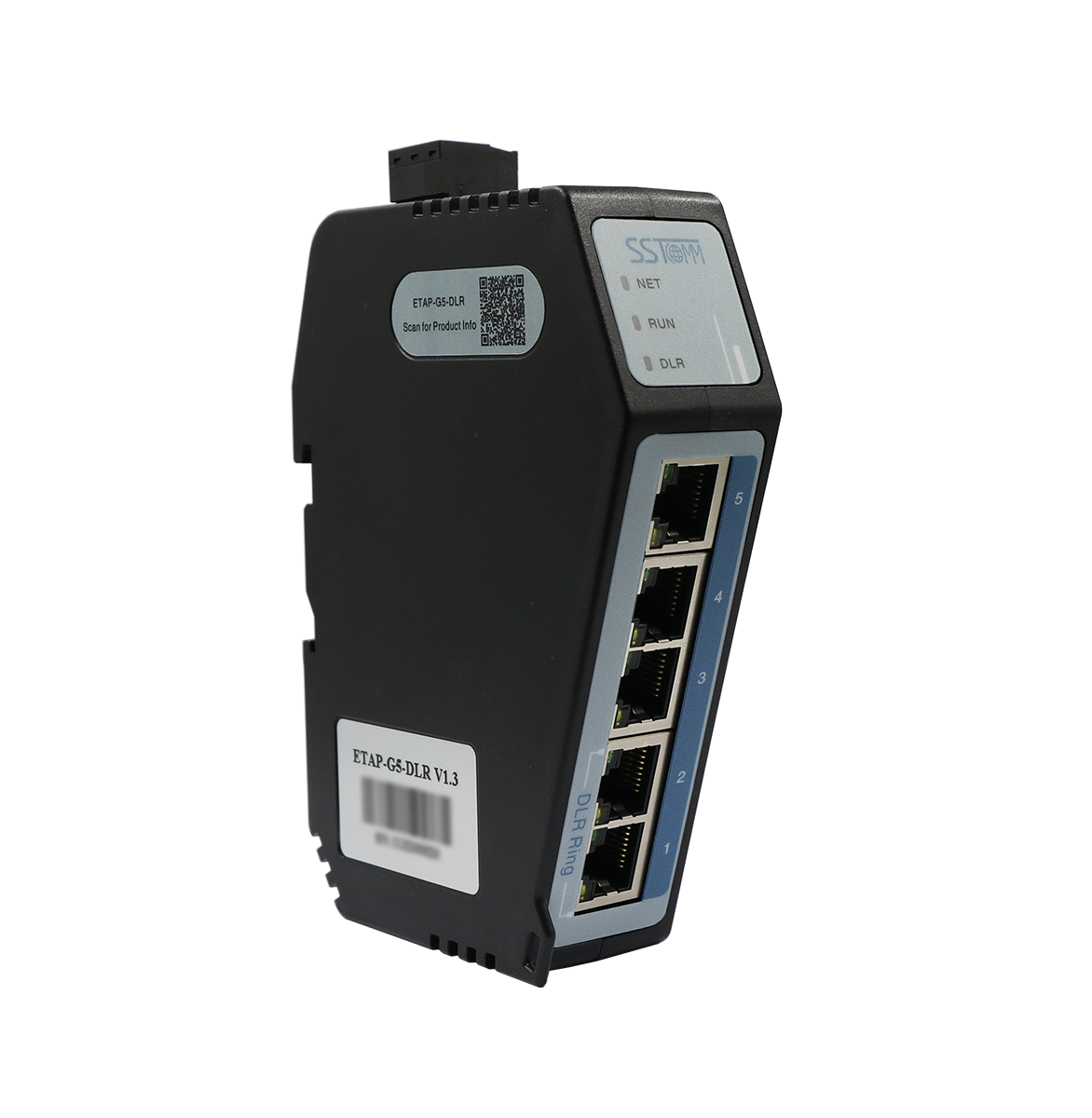

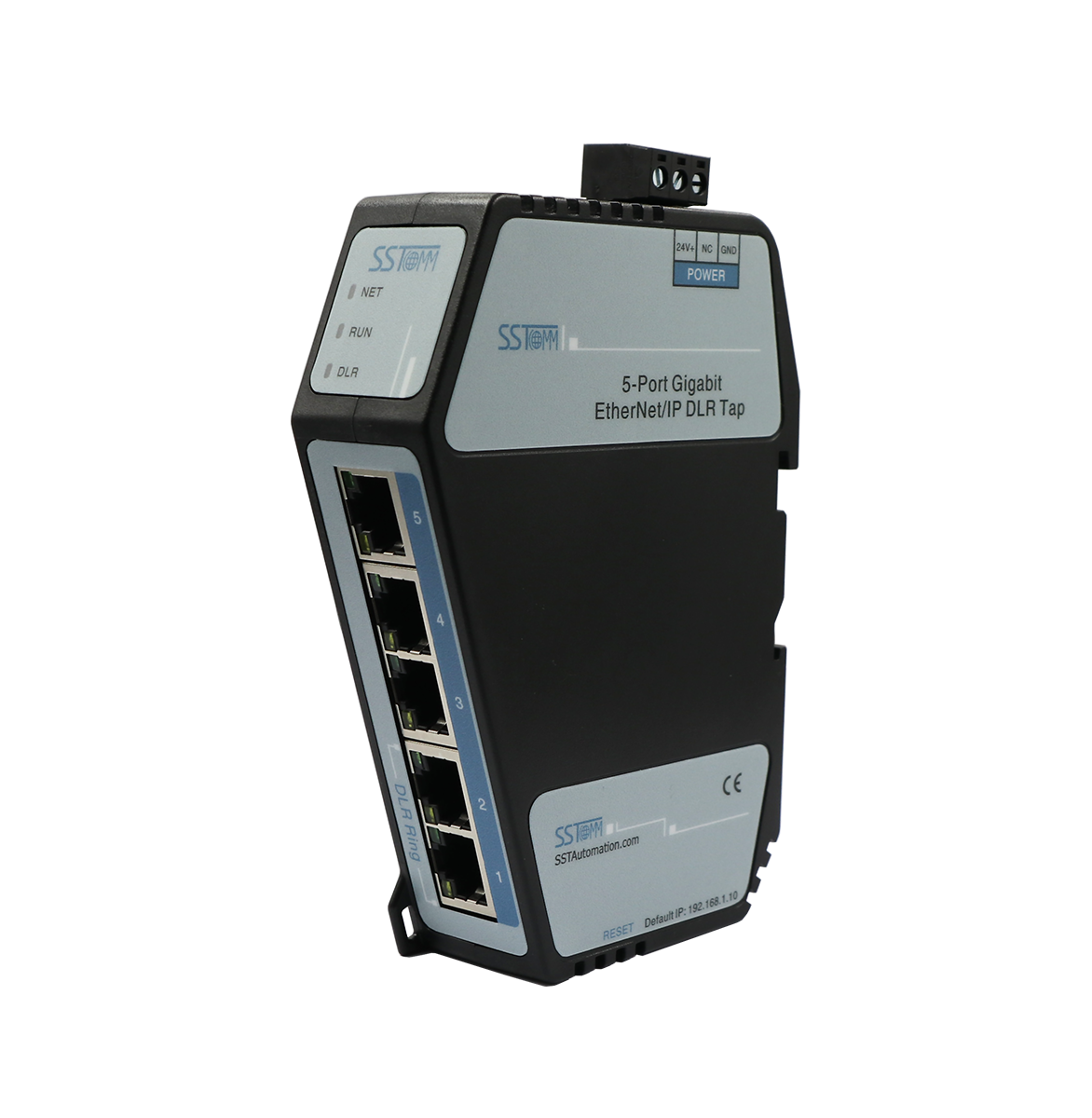

The ETAP-G5-DLR is a managed 5-port Gigabit EtherNet/IP tap designed for Device Level Ring (DLR) networks. It allows standard single-port Ethernet devices to participate in fault-tolerant DLR ring topologies.
Configurable as either a DLR ring supervisor or ring node, the ETAP-G5-DLR delivers high reliability, low latency, and millisecond-level fault recovery

Technical Specification
Order Information
Download
Quick Start Guide
Selection Guide
Case Study
Related Products
Warranty & Service

Technical Specification:

5× 10/100/1000Base-T(X) RJ45 ports, auto-negotiation and auto-MDI/MDI-X supported.
Full Gigabit wire-speed forwarding, store-and-forward switching architecture.
Supports Device Level Ring (DLR) protocol, configurable as DLR Ring Supervisor or Ring Node.
DLR fault recovery time: < 3 ms for a network of up to 50 nodes.
Allows non-DLR devices (legacy or single-port Ethernet devices) to be integrated into a DLR ring topology.
Industrial protocol support:
- EtherNet/IP (ODVA-compliant)
- Modbus TCP
Network management features:
- Web-based management interface
- SNMP v1/v2c/v3 for remote monitoring and configuration
- IGMP snooping for multicast filtering
MAC address table: 4K entries; frame buffer: 64K Bytes.
Power supply: 24 VDC (9–30 VDC), 250 mA @ 24 VDC.
Operating temperature: -4°F to 140°F (-20°C to 60°C); relative humidity: 5%–95% (non-condensing).
Protection class: IP20, metal housing.
Dimensions (W × H × D): 1.18 in × 5.04 in × 3.46 in (30 mm × 128 mm × 88 mm).
Mounting: 35 mm DIN rail mounting.
