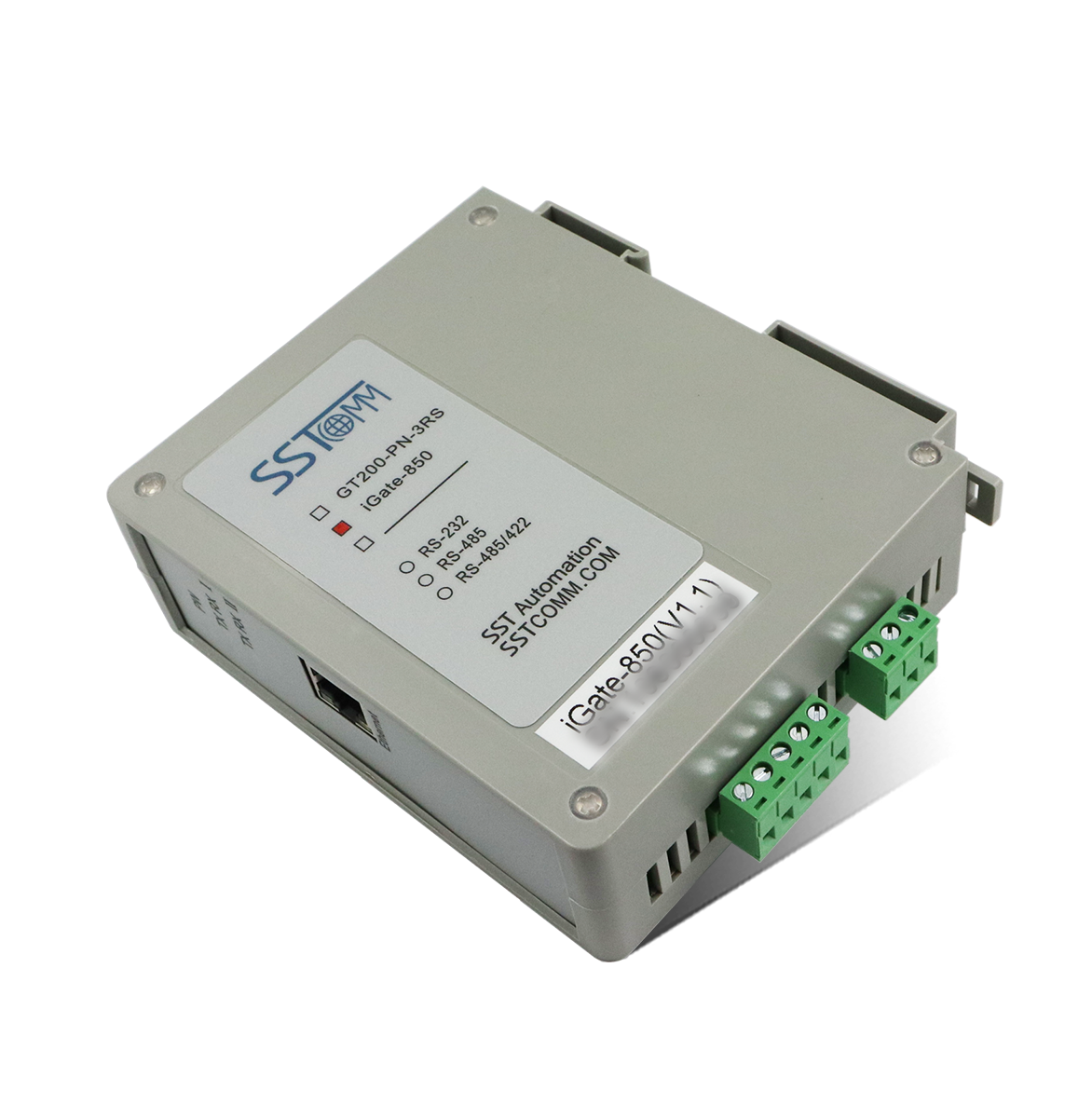

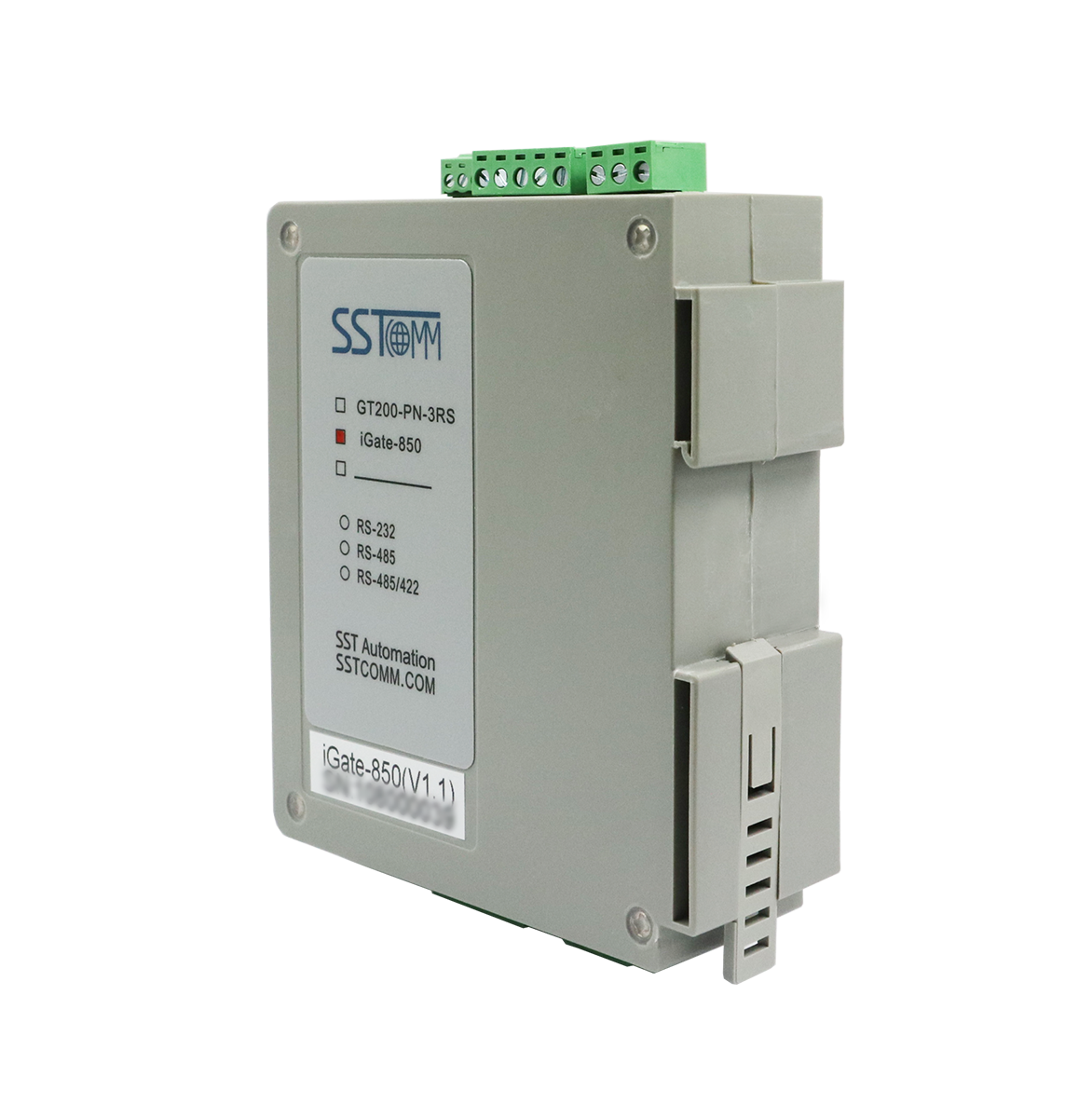

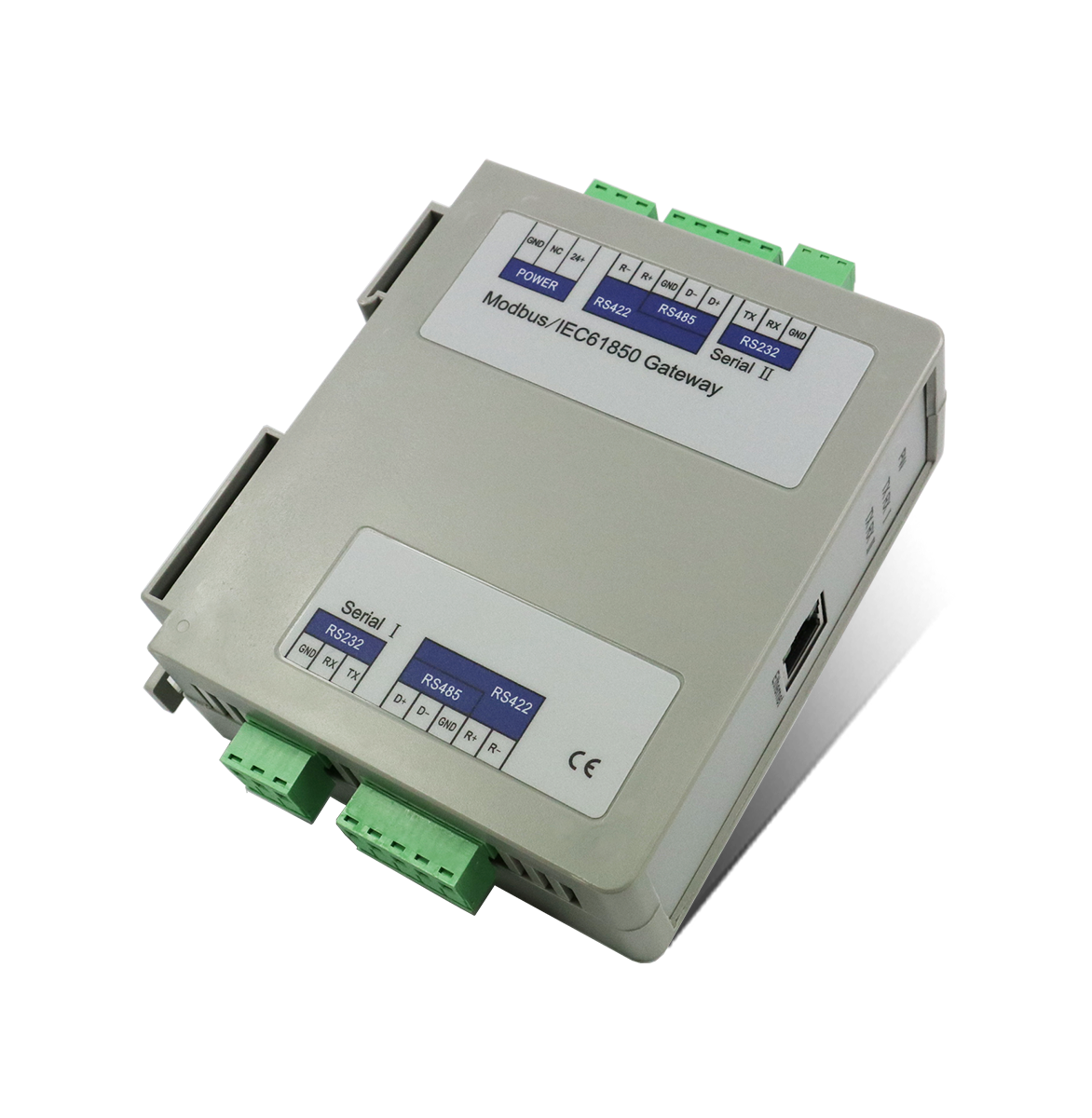

Modbus / IEC61850 Gateway




Provides a seamless information flow between Modbus and IEC61850 networks. The iGate-850 can connect multiple Modbus devices with RS-232/RS422/RS-485 interface to IEC61850 network.

Technical Specification:

1. One 10/100 BASE-T self-adaptive Ethernet, RJ45 interface.

2. Supports IEC61850-8-1 (MMS) and GOOSE (meeting the mechanism of fast message of substation automation system)

3. Supports debugging.

4. Maximum data points: 800. Supports connecting with up to 10 IEC61850 client stations and up to 20 Modbus devices.

5. Transmission mode supports Modbus RTU and ASCII; The serial baud rate supports 200~38400bps.

6. Free configuration software and ICD modeling software.

7. Low power consumption: 3W@24VDC.

8. IEC61850-10KEMA certification.

9. Operating Temp.: -40°F to 158°F(-40ºC to 70ºC), Humidity: 5%~ 95% (non-condensing).

10. Dimension (W*H*D): 1.6 in*5 in*4.33 in (40mm*125mm*110mm).

11. Mounting: DIN Rail Mounting (35mm).
