EtherNet/IP Series

Modbus / EtherNet/IP Gateway

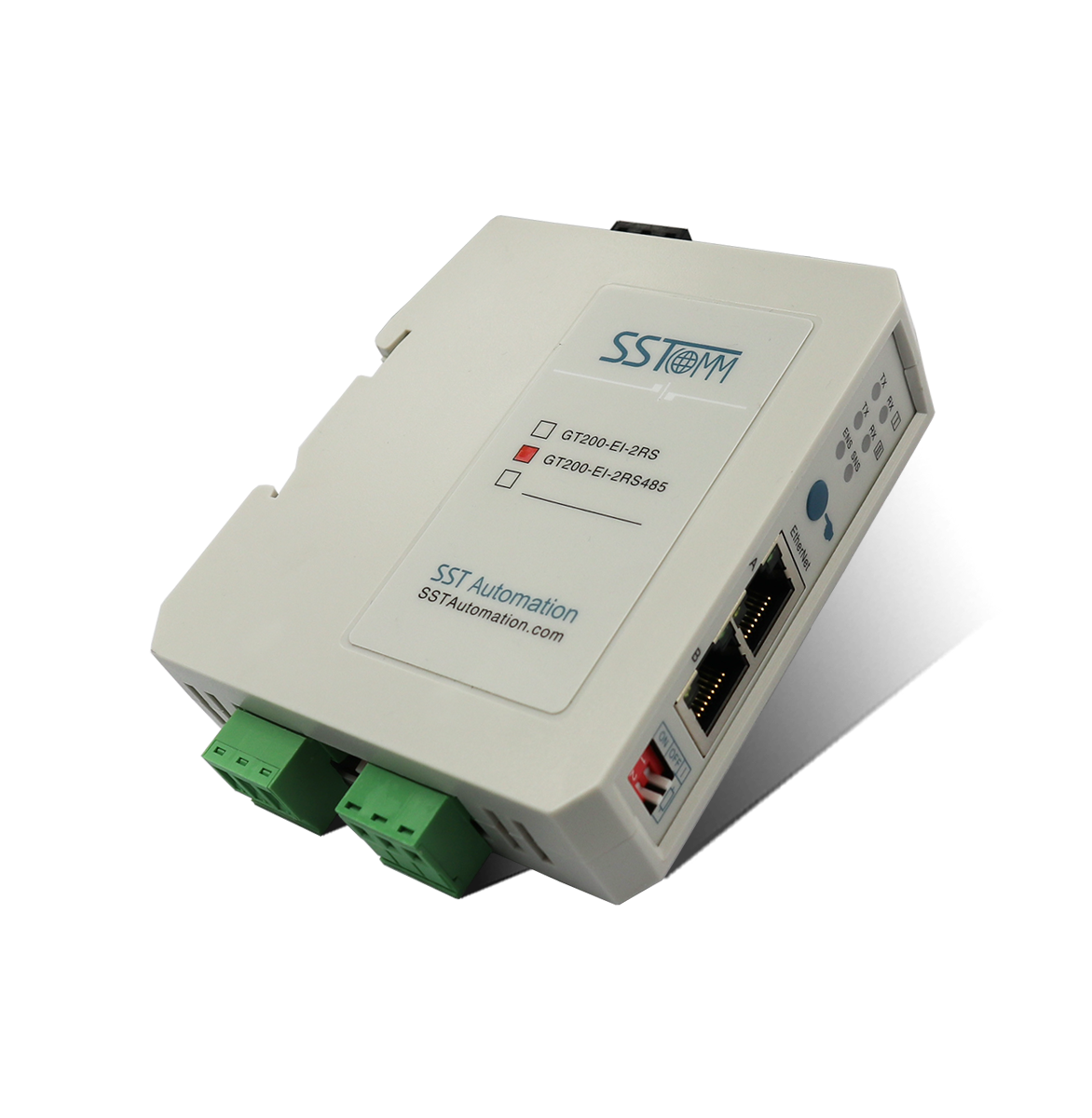

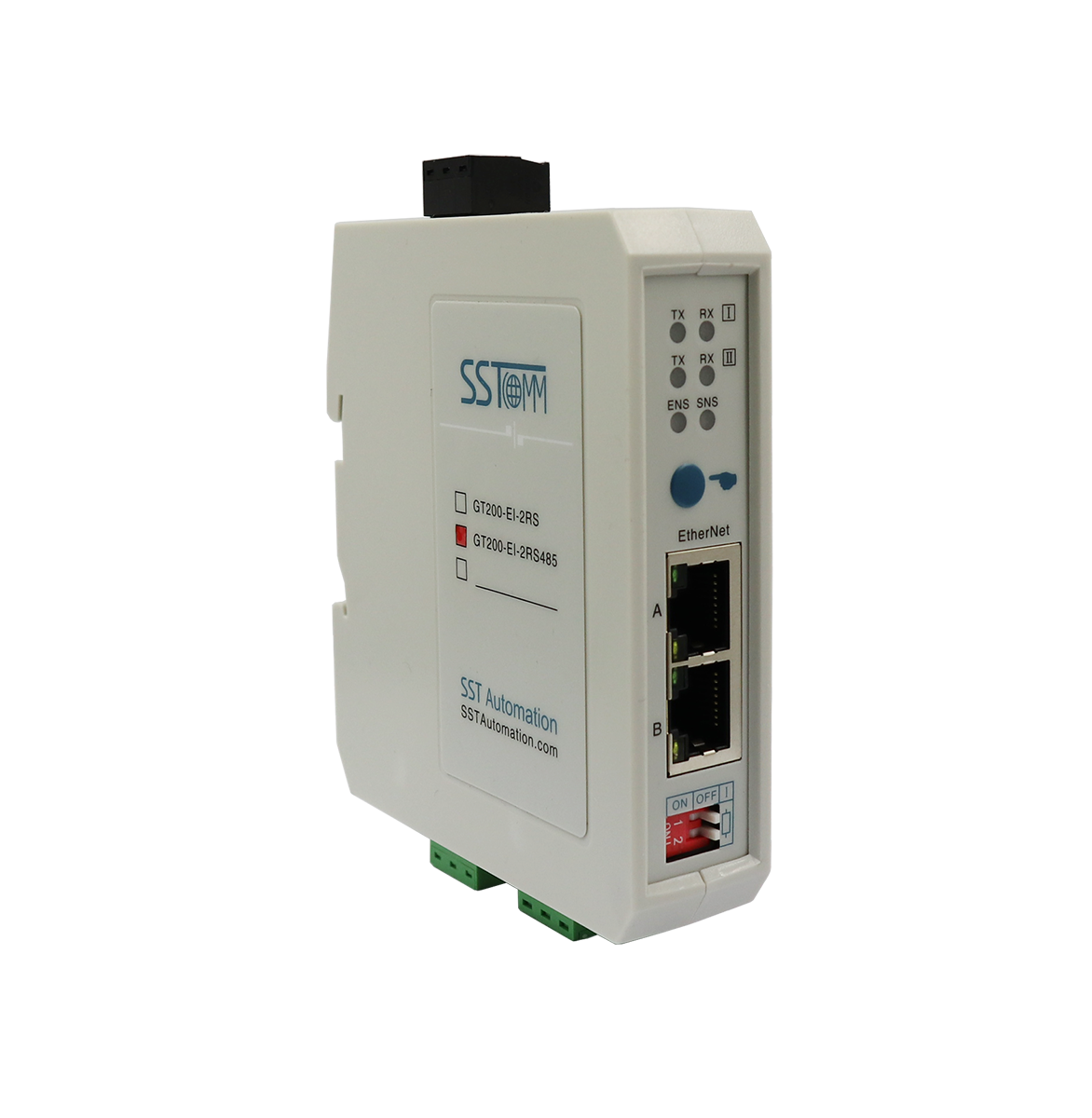

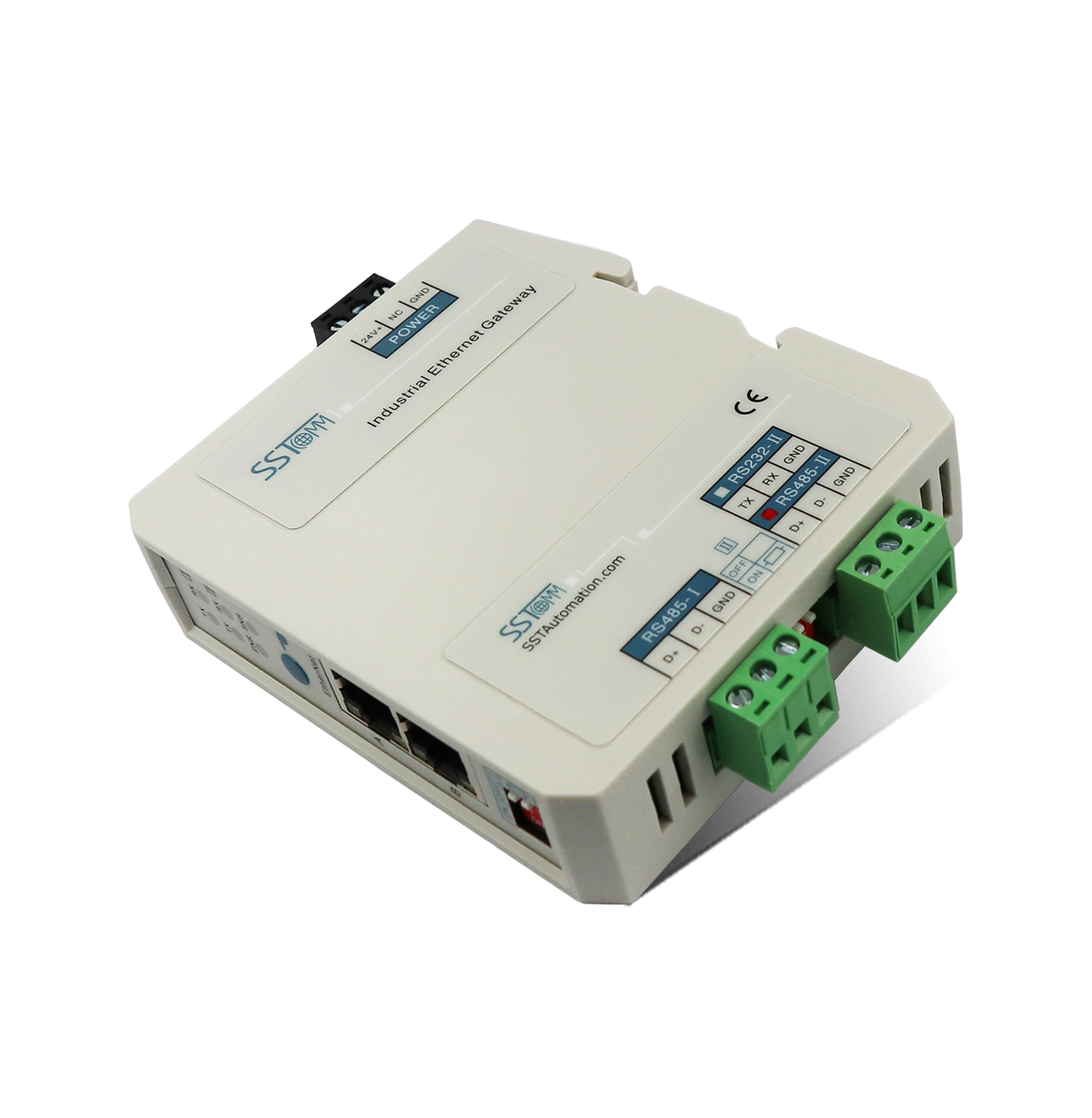

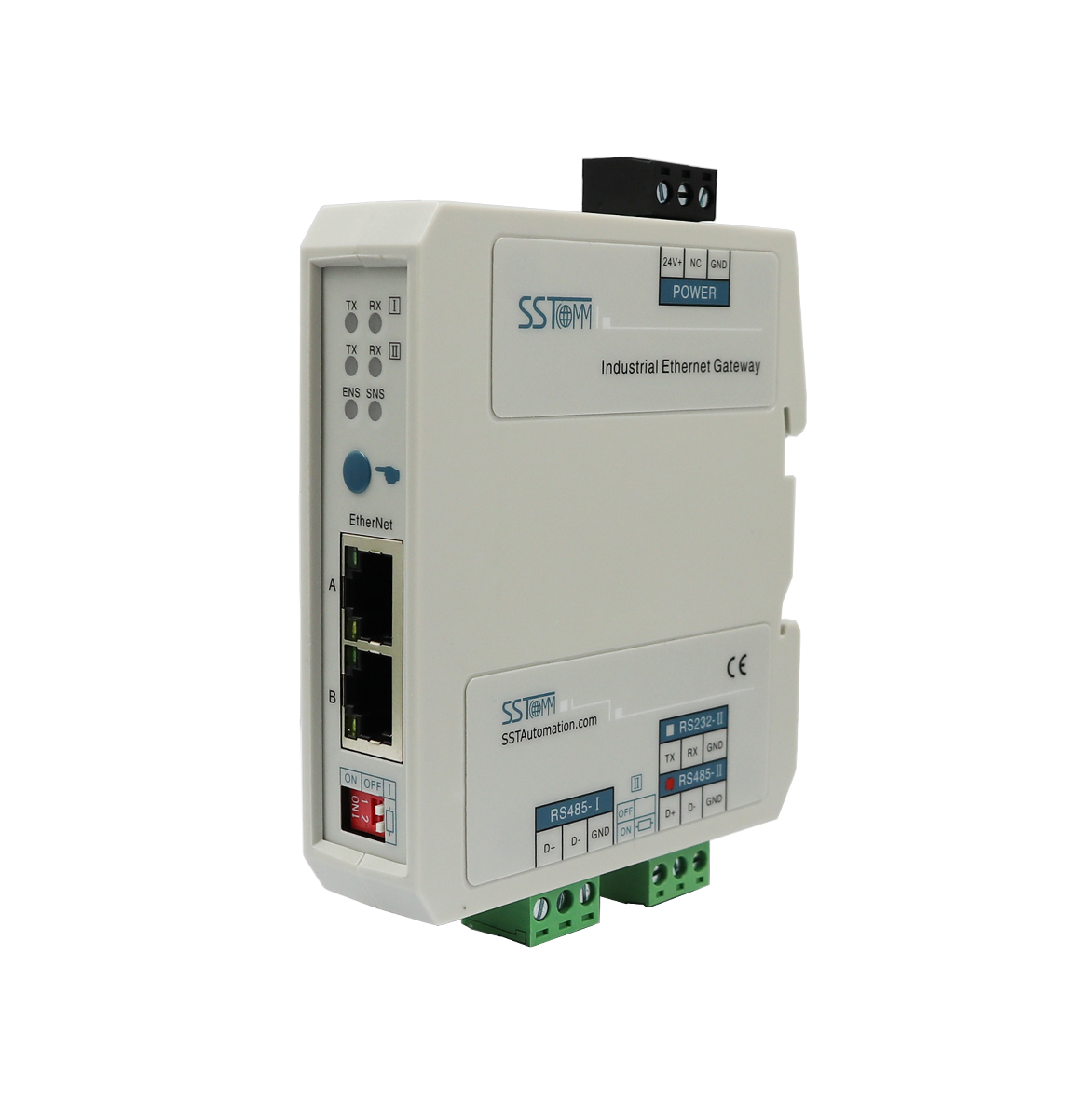

GT200-EI-2RS485
909-977-2988
WhatsApp

WhatsApp

+1-909-977-2988

Our 2-Serial Ports EtherNet/IP gateway, the GT200-EI-2RS485 provides a seamless connection between multiple Modbus devices with RS-485 interface and EtherNet/IP network.

 Technical Specification:

  • EtherNet/IP network is independent with two Modbus networks.
  • Ethernet 10/100M adaptive.
  • Dual Ethernet ports with built-in Ethernet switching functionality, supporting cascading connections.
  • Supports the ODVA Standard EtherNet/IP communication protocol.
  • Supports Non-DLR functionality and can be directly integrated into a DLR ring network.
  • Two serial RS-485 interfaces, half-duplex, and baud rate support: 300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200; parity support: none, odd, even, mark, space; 1 or 2 stop bits.
  • GT200-EI-2RS485 acts as master at the side of Modbus network:
    • Supports 01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H,17H function codes, can be configured up to 100 Modbus commands for each RS-485 interface;
    • Function: Cycle output, Disabled output, Change of value and Control word trigger;
    • Modbus function codes 03H, 04H, 06H ,10H and 17H support the "Byte Swap" function, and it can help users solve the problem of data format between two different networks.
  • The maximum number of input and output bytes of EtherNet/IP:
    • Maximum number of input bytes: 492Bytes.
    • Maximum number of output bytes: 492Bytes.
  • Power supply: 24VDC (9V ~ 30V), 110mA (24VDC).
  • Working temperature:-4°F to 140°F (-20°C to 60°C); Rel. Humidity 5%-95% (non condensing).
  • Dimension (W*H*D): 1 in*4 in*3.6 in (25mm*100mm*90mm).
  • Installation: 35mm DIN rail.
File Type Time Download

Modbus RTU to EtherNet/IP: Simple 3-Step Connection Guide

 Hardware Connection

  • Install the gateway on 35 mm / 1.4 in DIN Rail.
  • Connect the power to the power supply.
    Please do not power on the devices before finishing and confirming all the connections.

    Optional: Connect power supply II for backup redundancy.
  • Connect Modbus serial devices using the RS-485 interfaces.
  • Connect the GT200-EI-2RS485 with your computer via Ethernet cable.
  • Power on the GT200-EI-2RS485.

Software Configuration

Download, install, and run the configuration software, SST-GT-CFG. For more details, see Chapter 5 of the manual.

  • Upload the setting from the gateway by clicking "Upload". Find the GT200-EI-2RS485 gateway on the list, select it and click "Log In".
    Note:If the gateway cannot be detected: Ensure that the computer and the device are on the same network segment. Check whether the network cable is correctly connected, or contact us for technical support assistance
  • Click the Subnet of choice under the device window to configure the Subnet. (User Manual 5.4.2)
  • To add a Node, right click the Subnet you wish to add the Node to and proceed to click the "Add Node" operation.
    Configure the node. (User Manual 5.4.3)
    Configure the command (User Manual 5.4.4)
  • To add a Command, right click the Node you wish to add the Command to and proceed to click the "Add Command" operation. Double click on the Commands you wish to add to the Node and click OK.
  • Once configuration is complete, click "Download" to download your configuration into GT200-EI-2RS485. Find the gateway on the list, select it, and click "Log In".
  • Test the communication.

For advanced configuration and debugging, please refer to the User Manual for GT200-EI-2RS485.
