Industrial Ethernet Series
EtherNet MPI Adapter
GT100-IE-MPI
909-490-7557
WhatsApp
WhatsApp
+1-909-490-7557

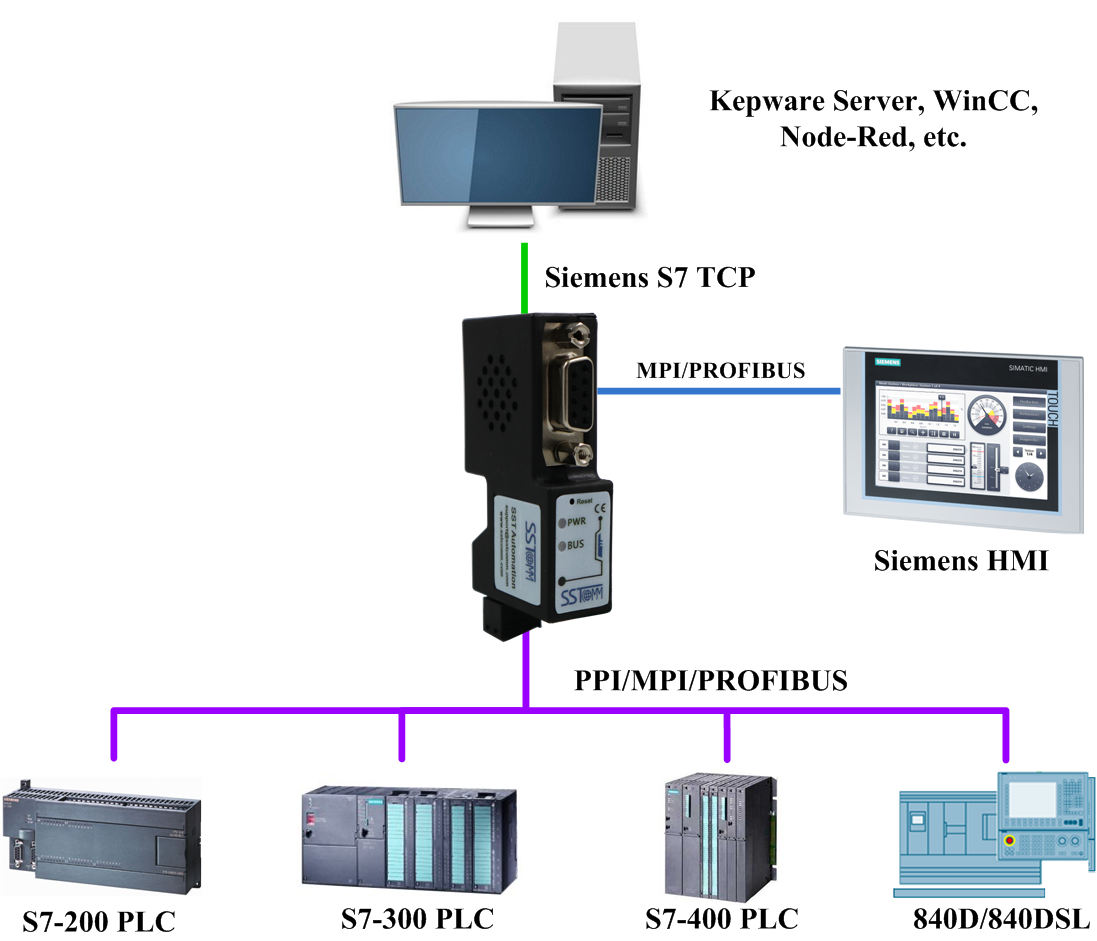

The GT100-IE-MPI adapter seamlessly connects Siemens SIMATIC S7 series PLCs (including S7-200, S7-300, and S7-400) and CNC systems (such as the 840D and 840DSL) to Ethernet networks. This innovative adapter enables real-time data monitoring via the MPI port, ensuring the seamless integration of legacy Siemens PLCs into modern Ethernet infrastructures. For models without a native Ethernet port, the adapter facilitates reliable communication when paired with Kepware Server, significantly enhancing your system's flexibility and operational efficiency.
-
Technical Specification
-
Order Information
-
Download
-
Quick Start Guide
-
Selection Guide
-
Case Study
-
Related Products
-
Warranty & Service
Technical Specification:
- DB9 communication port:
- Interface type: TIA/EIA RS-485 compatible, ESD: ±15KV, up to 32 nodes.
- Supported Protocols: Siemens S7 bus multi-master protocol (PPI, MPI, and PROFIBUS).
- Baud rate (bps): 9600, 19200, 45450, 93750, 187500, 500K, 1.5M.
- Ethernet port:
- Network port type: 10/100 Mbps auto-negotiation Ethernet port.
- Protocol supported: S7TCP (16 TCP/IP connections), Modbus TCP Server.
- Supports Node-RED connections.
- Power Supply: 24 VDC (11-30 VDC), 100mA(24VDC).
- Operating temperature: 0°C to 60°C (32°F to 140°F). Humidity: 5%-90% (non-condensing).
- Dimensions (W x H x D): 0.67 in x 2.56 in x 1.29 in (17mm x 65mm x 33mm).
- Installation: Plugs directly into the Siemens S7 PLC DB9 port.
- Protection Level: IP20.
