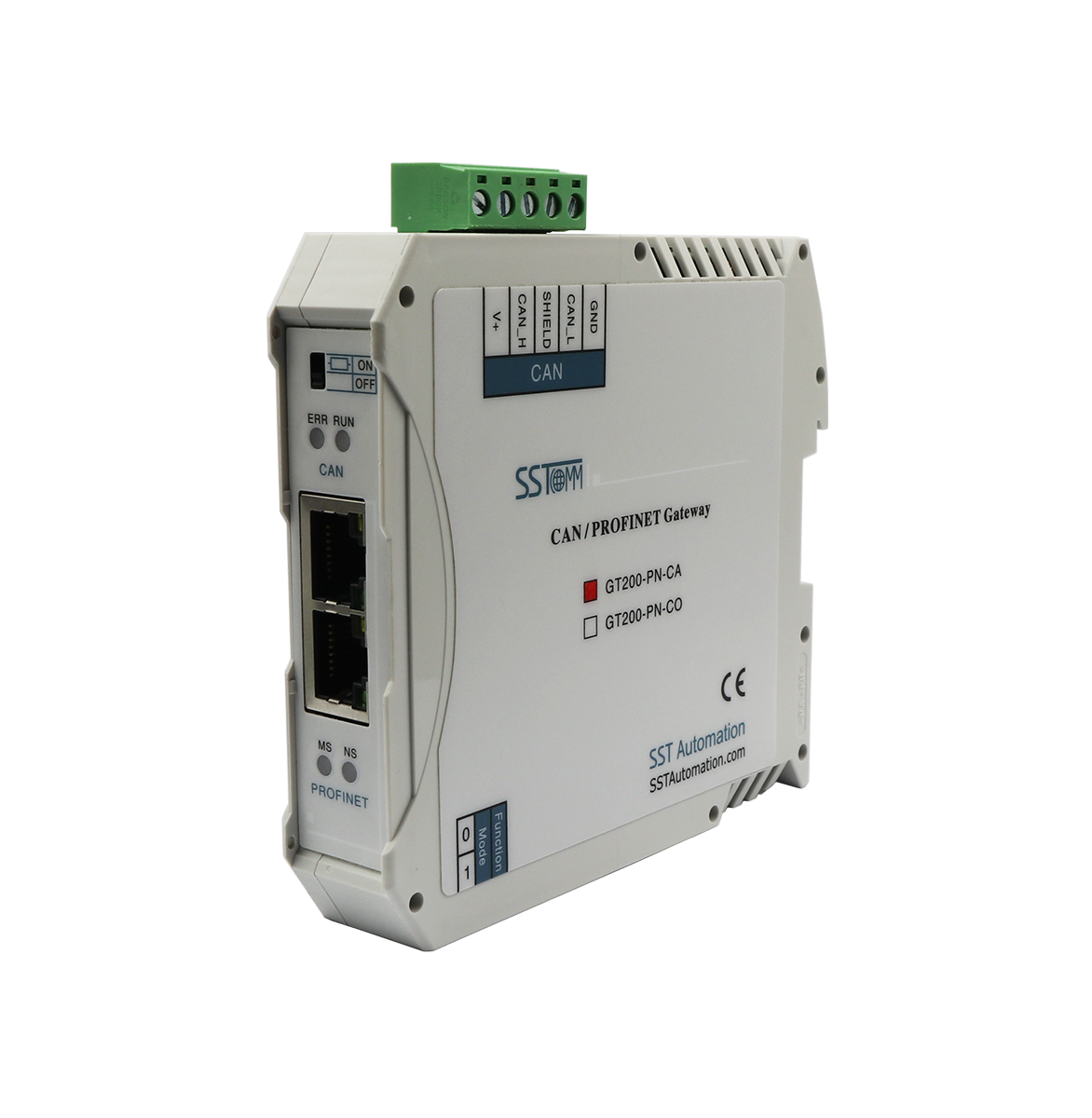

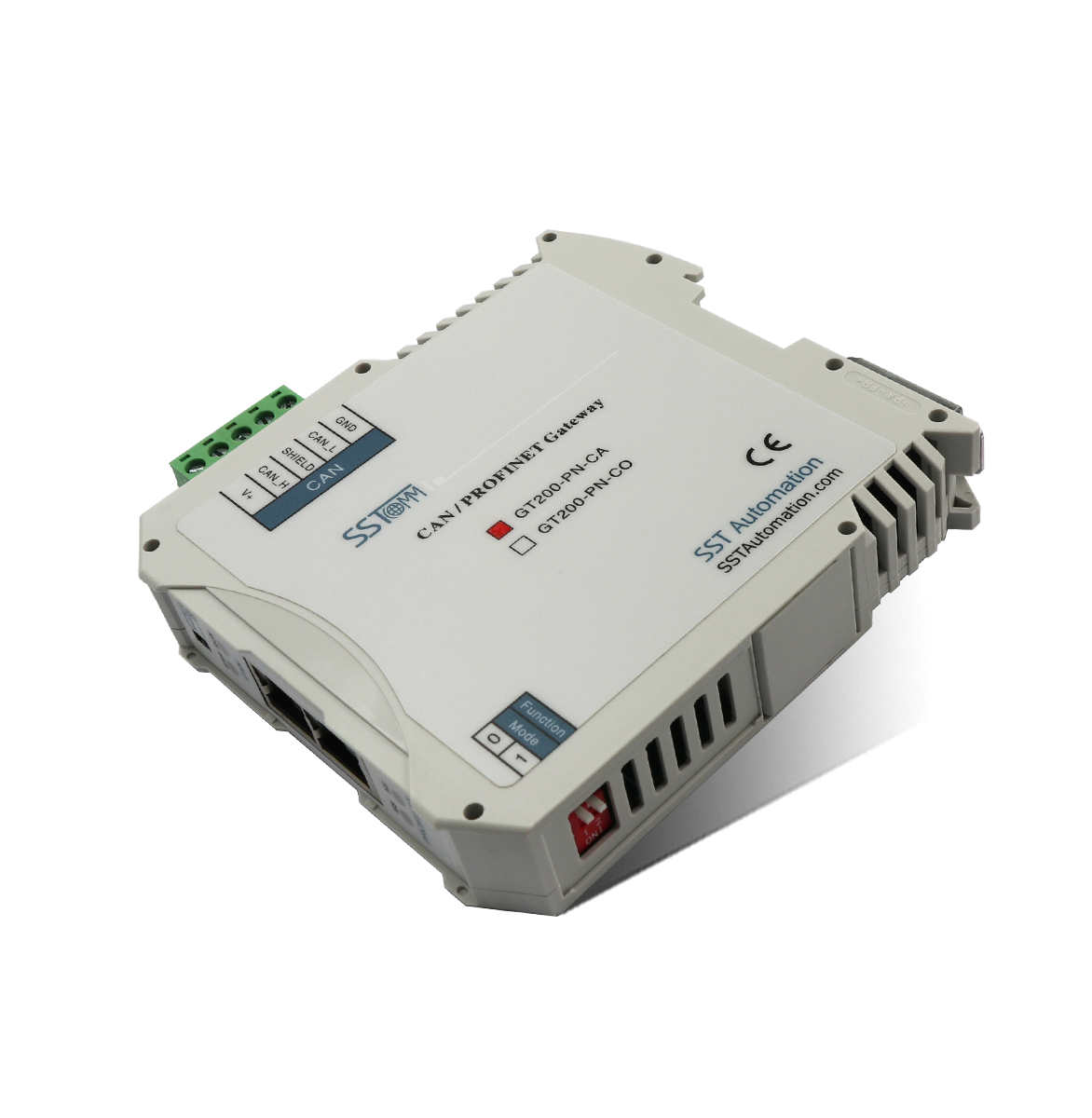

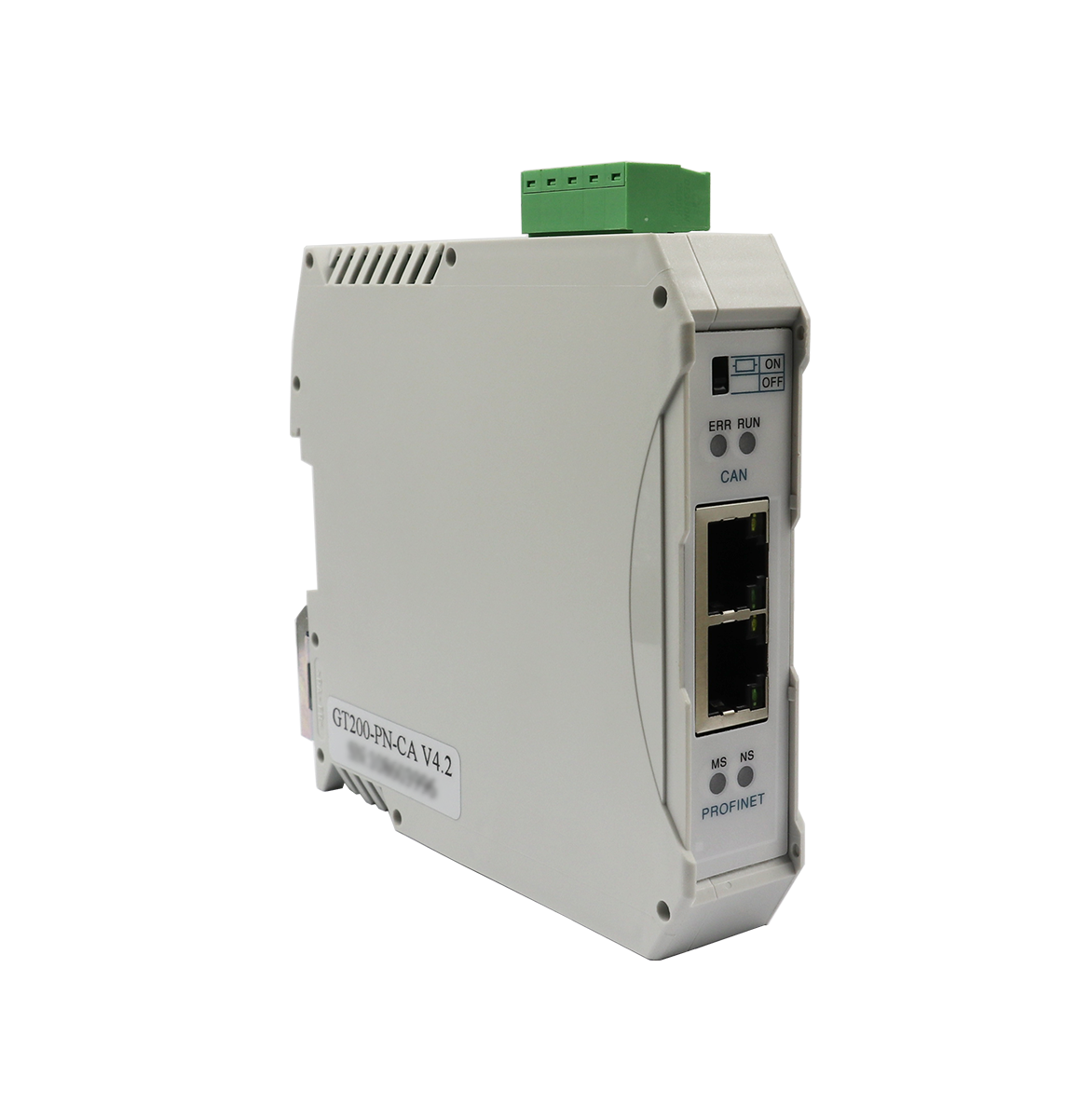

Technical Specifications:

• PROFINET Features
  • Supports PROFINET MRP and System Redundancy (S2).
  • Supports up to 32 slots on the PROFINET side, with a maximum of 1440 input bytes and 1440 output bytes (actual usable length depends on PLC and PDU size of the communication module).
• CAN Features
  • Compliance: CAN 2.0A/B.
  • Frame formats:
    • Standard frame (11-bit ID).
    • Extended frame (29-bit ID).
  • Baud rates: 10, 20, 50, 100, 125, 250, 500 kbps, and 1 Mbps.
  • CAN ID filtering: Supports up to 256 Receive frames, 256 Transmit frames, and 256 Request-Response frames.
    • Receive Frames (max. 256).
    • Transmit Frames (max. 256).
    • Request–Response Frames (max. 256).
  • Status word generation for Receive frames.
  • Independently configurable transmission cycles for Transmit frames.
  • Timeout reset and hold functions for Request-Response frames.
  • Supports TX/RX frame counting and CAN frame status monitoring.
• General
  • Power supply: 24 VDC (range: 11V-30 V), 90mA @ 24VDC.
  • Operating temperature: -20°C to 60°C (-4°F to 140°F).
  • Humidity: 5% to 95% RH (non-condensing).
  • Protection:
    • ESD: 15kV HBM.
    • Isolation voltage: 3kVrms.

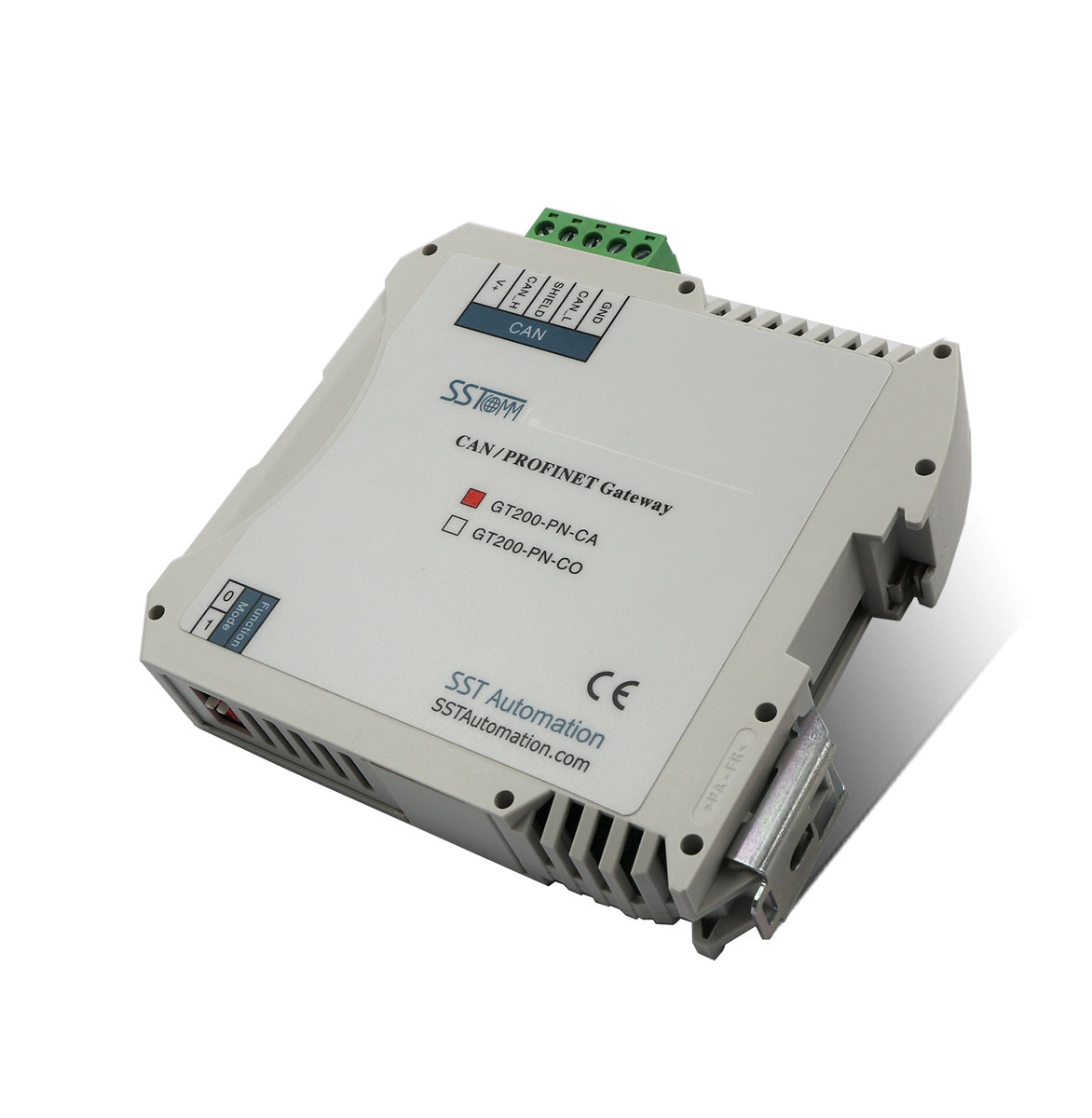

• Physical Features
  • Dimensions (W x H x D): 0.9in x 3.9in x 4.5in (22.5mm x 99mm x 114.5mm).
  • Mounting: 35mm DIN rail.
